EZ Stud Out®
Stop Fighting
Broken Studs.
Seized and snapped exhaust manifold studs, removed without pulling the cylinder head. Bolt on the EZ Stud Out® template, weld the nut, and back the stud right out. Save the threads, save the head, and save your day.
< 10 Min
Per Extraction
0
Heads Removed
10k+
Happy Clients
EZ to use
Three Steps. No Drilling.
1
01
Attach Template
Bolt the engine-specific EZ Stud Out® template over the broken stud. It lines up with the exhaust port pattern, so the stud sits centred in the guide hole.
2
02
Weld Nut
Drop the nut into the template cavity and MIG-weld it to the stud. The template keeps the weld on the stud, not on the head.
3
03
Back It Out
Put a wrench on the welded nut and turn the stud out. Threads saved, and the cylinder head stays on the engine.
Proven Performance
Up to 20 Hours.
Done in Under 10 Minutes.
Two worst-case manifold stud removals, each finished in under 10 minutes with EZ Stud Out® — jobs that can take up to 20 hours the conventional way.
Conventional method
Up to 20 hrs
With EZ Stud Out®
< 10 min
Results from the jobs shown in the videos. Times vary by vehicle and condition.
Shop the system
Pick Your EZ Stud Out® Kit

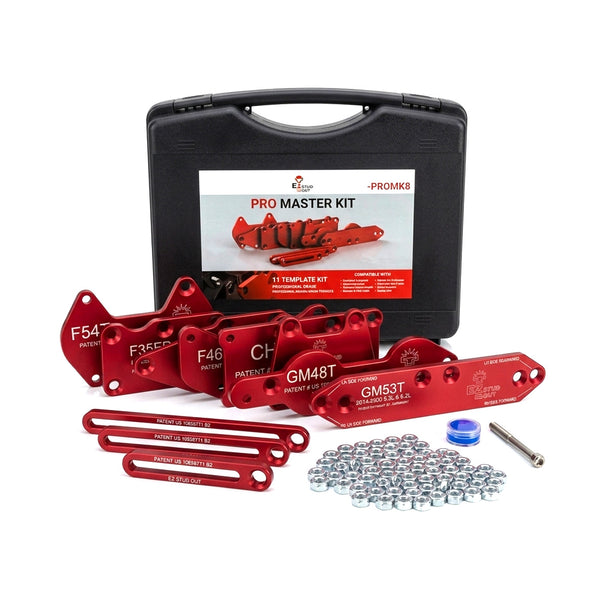

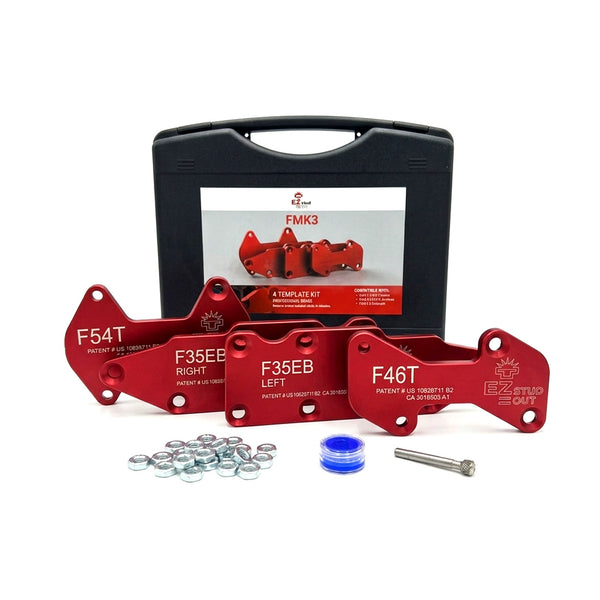

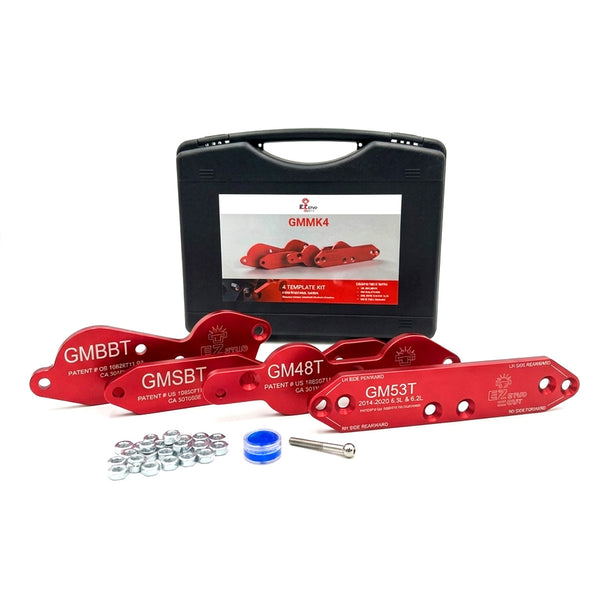

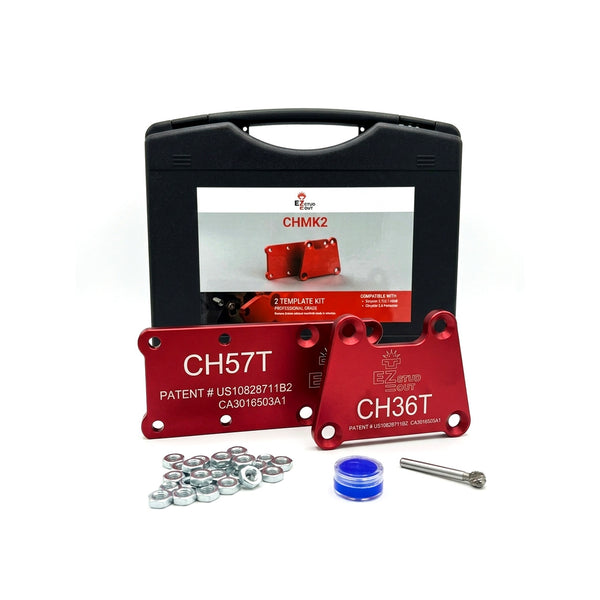

Master Kits cover a whole engine family. Templates & Nuts target one engine.
Loading…
Find your template
The Right Fit,
First Time.
- Precision fitment for your engine
- Prevent costly mistakes
- Save time on the job
1. Choose your engine
2. Your template

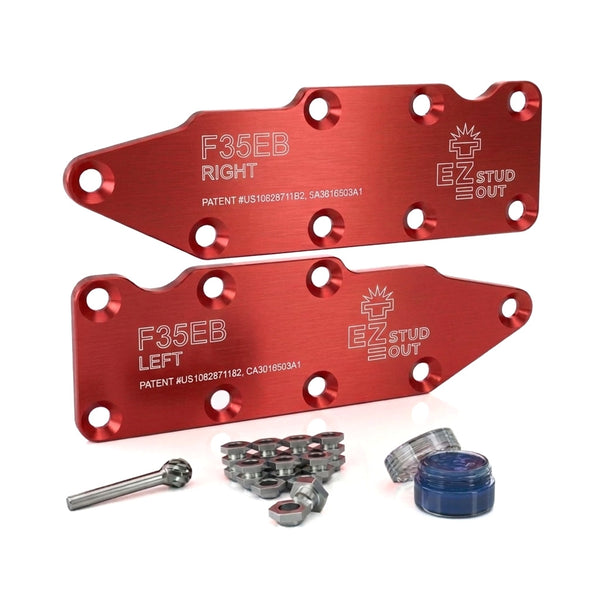

F35EB EcoBoost 3.5L Stud Removal Kit
$159.95
$199.95
Got Questions?
Frequently Asked Questions
How do I know which template fits my vehicle?
Use the Template Selector: choose your make, model and engine, and it shows the matching EZ Stud Out® template.
Are discolored plates ruined?
No. Discoloration is heat "battle damage" and does not affect function. Keep the MIG nozzle leaning into the template cavity so the arc hits the stud.
What type of welder is required?
A MIG welder only. Stick welding will arc against the template and damage it.
What are the recommended welder settings?
Start with wire speed around 50% and low amperage, then increase until the weld bites into the stud without melting the template.

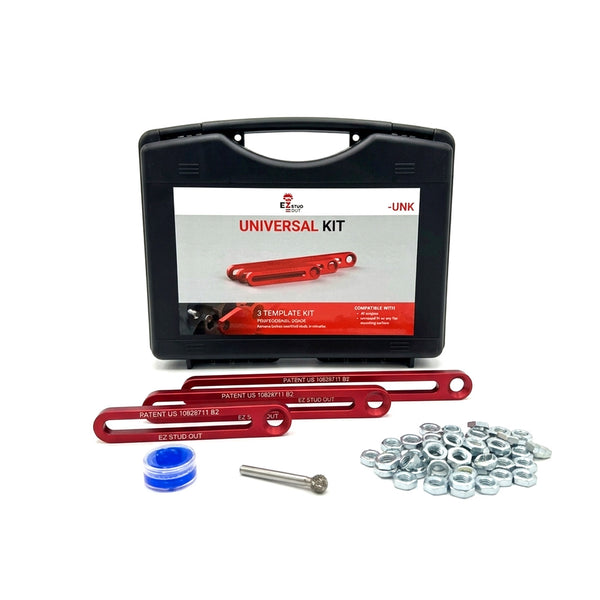

Can I use the M10 nuts (TN25M10) on any template?
No. M10 nuts are for the Universal Kit only. All other kits use M8 (TN25) nuts.
